PREP

The machines that go in front.

PREP does two jobs. It separates oil, water and food waste (that is the SEPARATOR), and it grinds or shreds larger material first — coconut, oyster shell, lemongrass.

Nine tools, each rated for its own material and task Grinders · shredders · chippers Glass crusher · bin lifter
Ask about PREP equipment →The datasheet ↓

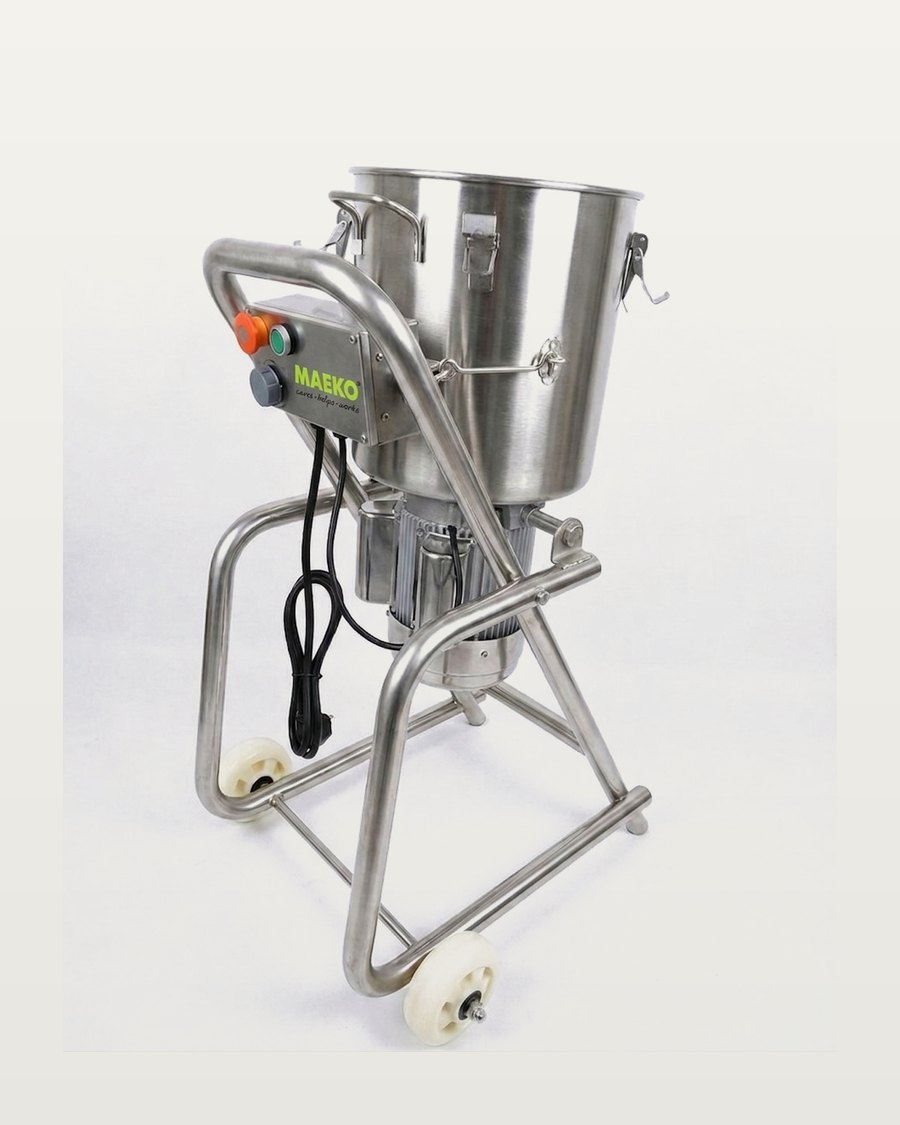

A MAEKO food grinder: a stainless hopper bowl over a motor, on a wheeled tubular trolley with a start/stop control box.
A MAEKO food grinder
Each one refuses almost everything.

A glass crusher takes glass. The husk shredder will not accept a wet green coconut. Each tool is deliberately narrow, so the machine downstream only gets what it can handle.

Embroidered patch: back of house.
What PREP is for

Whole in, smaller out.

Three steps. Only some of what comes out goes on to a composter.

01
01 · it arrives whole
Glass, husk, branch and shell.The streams a composter is not built to take, plus the bones and cooked food that have to be broken down first.
02
02 · narrow by design
Each tool is narrow.The glass crusher takes glass and nothing else. The chippers take wood and branches only. That is the design, not a limitation.
03
03 · where it goes
Not all of it composts.Ground food and soft-peel slurry go on to a composter or a digester. Crushed glass does not. Collect and handle the crushed glass according to the equipment instructions.
The tools

Two of the nine, by name.

A grinder that reduces food waste before it reaches a composter, and a shredder built for husk.

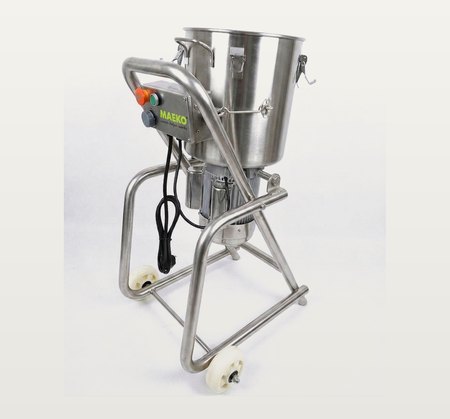

A MAEKO food grinder on a wheeled tubular trolley: a stainless hopper bowl over a motor, with a start/stop control box.
Grinder A stainless hopper over a direct-drive motor, on a wheeled frame. It reduces food waste before it reaches the machine that composts it.

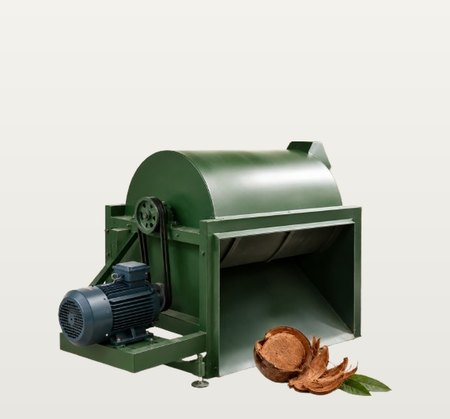

A green drum shredder with a belt-driven electric motor and a wide inlet chute, beside a split coconut husk
Shredder A belt-driven drum with a wide inlet chute, with a split coconut husk beside it. Husk is the SG10-3P’s job.

Not shown to scale. Dry husk and shavings only: the shredder must not be fed a wet green coconut.

The rule on the wall

Each tool takes one thing.

Nine named tools, and not one of them is general-purpose. Print it and tape it above the bay, so nobody has to remember which machine takes what.

ONE TOOL, ONE STREAM Pre-processing & site support
SG

YES

GlassMGC01-3P
Wood · branchSG6-25 · SG4-13
CoconutSG10-3P · CCG-75
Oyster shellCCG-75
Big boneCCG-75
Fish boneLQ150A · B
Chicken boneLQ150A · B
Cooked riceLQ150A · B
Cooked foodLQ150A · B
Fruit peelFWBM-30
Veg trimFWBM-30

NEVER

NEVER: A WET GREEN COCONUT IN THE HUSK SHREDDER SG10-3P takes dry husk and shavings only. A whole green coconut goes to CCG-75.
Supervisor: MAEKO
The datasheet

Nine named tools, and what each one takes.

Compare the materials, capacity and dimensions for each tool.

Grinders & blender
LQ150A
Food Waste Grinder A
Cooked and fresh food waste, including small bones. Fed 2 kg at a time, ahead of a composter.500 × 500 × 860 mm · 80 kg · two-year warranty
100–150 kg/hour
max 1 tonne/day
LQ150B
Food Waste Grinder B
The same job in a heavier body. Cooked and fresh food waste, small bones, 2 kg per input.630 × 600 × 930 mm · 160 kg · two-year warranty
100–150 kg/hour
FWBM-30
Food Waste Blender
Soft vegetable and fruit peels only. Comes out as a slurry, ready for a digester or a composter.620 × 620 × 950 mm · 40 kg · two-year warranty
30 kg

Choosing between LQ models. LQ150A and LQ150B are grinders. They share the LQ prefix with the OUTFLOW digesters (LQ15 to LQ500) but perform a different task.

Shredders & chippers
SG10-3P
Coconut Husk Shredder
Dry coconut husk and shavings only. Wet green coconuts must not go in.Machine size 4 ft · two-year warranty
10 bags/hour
60 kg
CCG-75
Industrial Grinding Unit
Whole green coconuts, oyster shells and big bones: what the smaller grinders cannot take.1,470 × 645 × 1,700 mm · 850 kg · two-year warranty
1 tonne/day
SG6-25
Wood Chipper, high speed
Wood and branches only. Petrol engine, for landscaping and branch waste.2,100 × 950 × 1,100 mm · 470 kg · two-year warranty
4–6 m³ / hour
SG4-13
Wood Chipper, low speed
The same job, slower and smaller. Wood and branches only.1,900 × 670 × 1,550 mm · 195 kg · two-year warranty
0.5–1.0 m³ / hour
Glass
MGC01-3P
Mobile Glass Crusher
Glass bottles are fed one at a time and reduced for collection. Follow the specified glass types and handling instructions. On castors, so it moves between bays.400 × 400 × 1,500 mm · 120 kg · two-year warranty
450 L bucket
Handling
LIFTER · L500
Bin Lifter
Lifts a bin and tips it into the machine. Metal, powder-coated finish.
Also in the PREP range

Storage and handling, not pre-processing. These two sit alongside the tools above, but they hold and move waste rather than reduce it.

MBM-27 / MBM-40
Organic Waste Turn Drum. A manual compost tumbler, 270 L (30 kg a day) or 400 L (60 kg a day). Garden waste only. It is intended for garden waste, rather than the kitchen food-waste stream. Warranty two years.

FWB-24 / FWB-48 / FWB-72
Food Waste Bin Chiller. Refrigerated bin storage, 240 L per door, one to three doors, holding waste at 4–10 °C until it is processed. R290 refrigerant, HFC-free. Storage, not processing. Warranty two years.

Power draw, daily kWh and noise. Ask us for any model and we will send them. Each tool is rated for its own task, in units such as kilograms per hour, cubic metres per hour or bags per hour. Use the individual model’s rating when selecting equipment. CE marked — all models. Tell us what you need to process so we can recommend the right tool.

Next step

Tell us what jams, and what you carry out.

Tell us about a week of your waste: what it is, roughly how much, and what your current machine refuses. We will tell you which of these tools fits in front of it, or that you do not need one at all.
